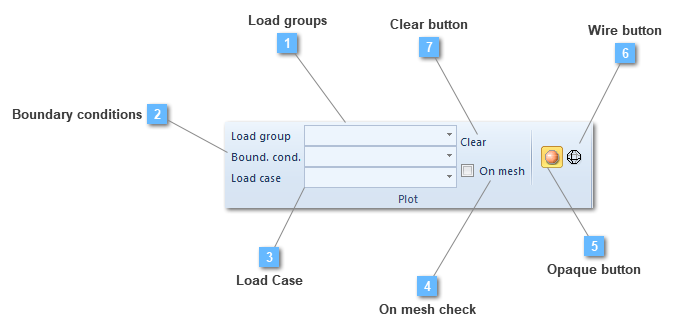

Plot toolbar

Plot toolbar
1

Load groups

1. Load groups

Load group tool allows making visible every created load group.

For instance:


2

Boundary conditions

2. Boundary conditions

Boundary condition tool allows making visible every created boundary condition.

For instance:


3

Load Case

3. Load Case

Load case tool allows making visible every created load case. That is, every load group and boundary condition that have been added to a load case will be visible.

For instance:


4

On mesh check

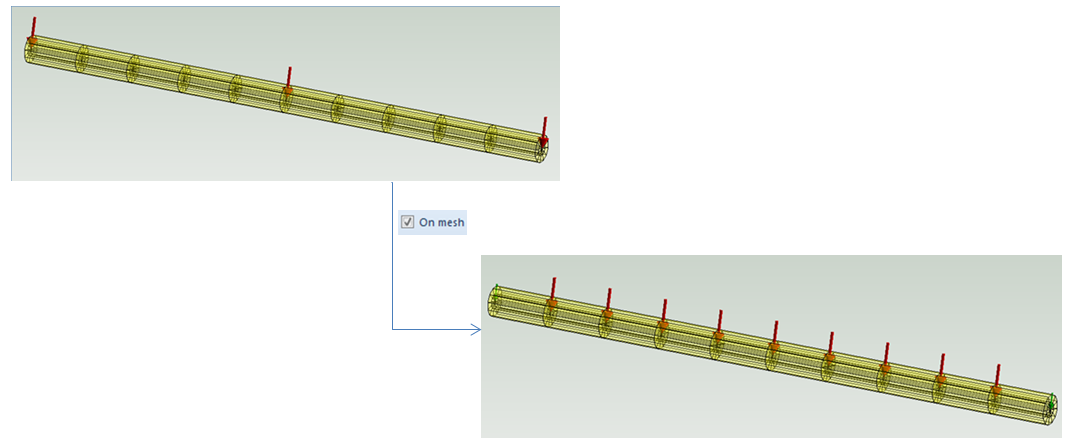

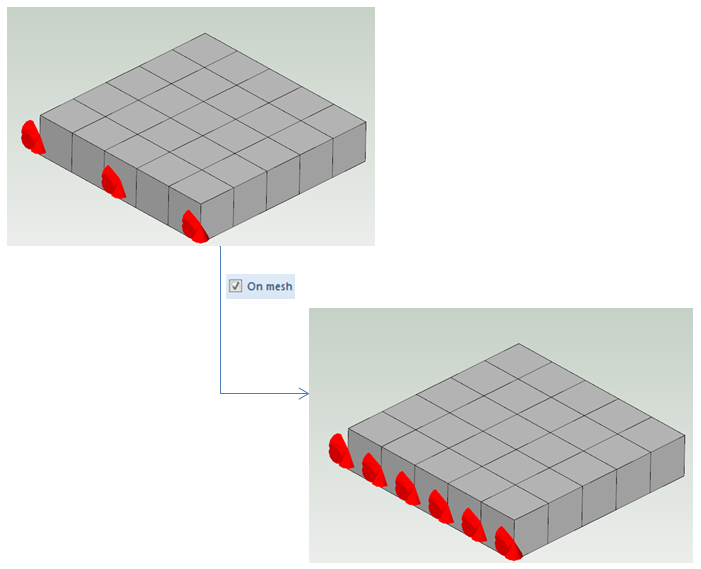

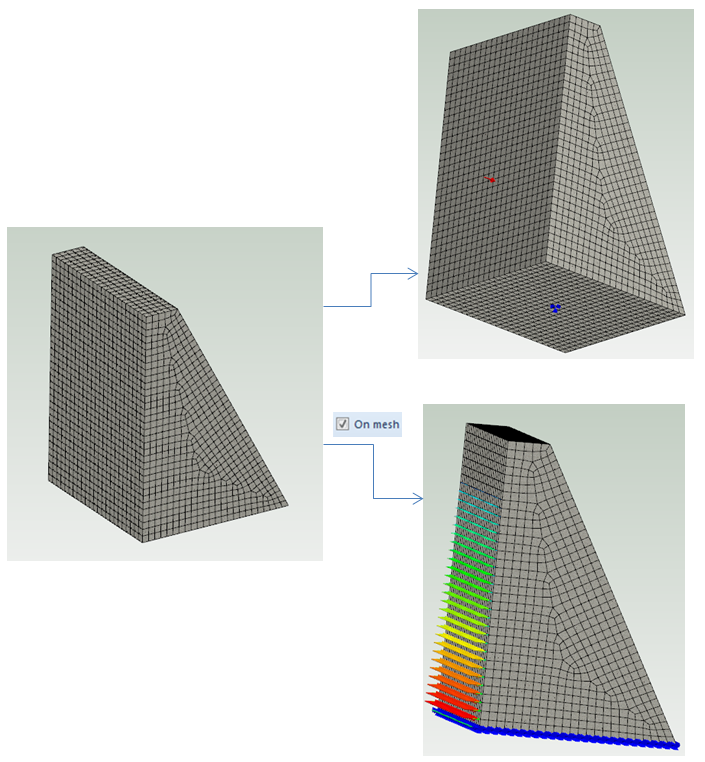

4. On mesh check
Show the loads on the finite element mesh or on the geometry

5

Opaque button

5. Opaque button

This is the default option. Opaque tool allows the load groups, boundary conditions or load cases to be visible using a solid color.

6

Wire button

6. Wire button

Wire tool allows the representation of load groups, boundary conditions, and load cases in a wire mode.

7

Clear button

7. Clear button
Remove loads from the graphical view
