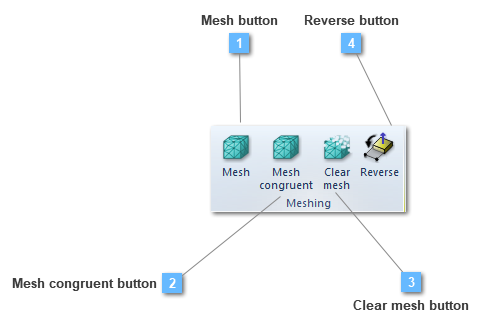

Mesh selection toolbar

Mesh the selected structural elements



This mesh type option only execute the mesh in the selected structural element or elements.



Mesh auto-detecting common parts of structural elements.

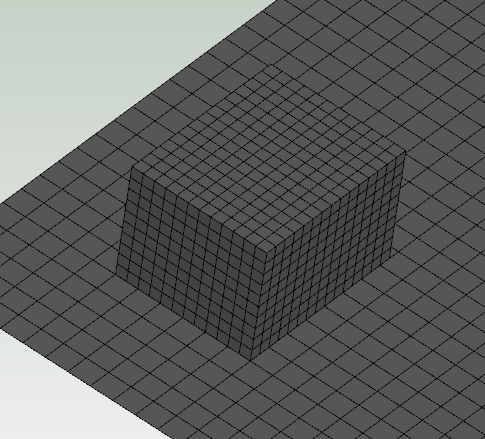

For example, using normal meshing we get:

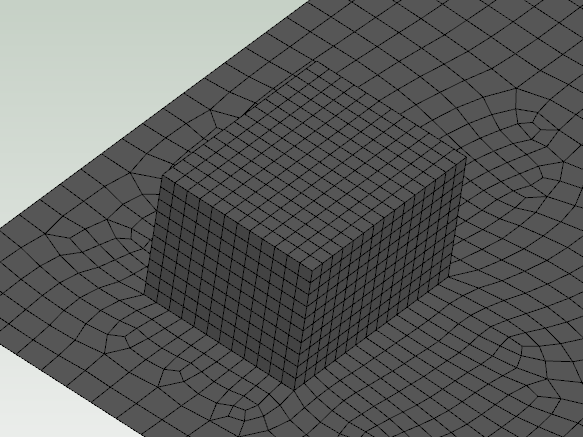

But congruent meshing takes into account the selected structural elements to affect the resulting mesh:







Clear the mesh from the selected structural elements



This clear mesh option only clear the mesh in the selected structural element or elements.



Reverse the local axis orientation
