The utility of the HUD button is showing or hiding the Head Up Display bar. If the HUD is activated, the Head Up Display bar is visualized.
The geometry HUD bar appears at the time the user creates a new model. The Head Up Display bar changes when a structural element is created and meshed.
The bar complements the selection tools defining the affected entities of a particular action.

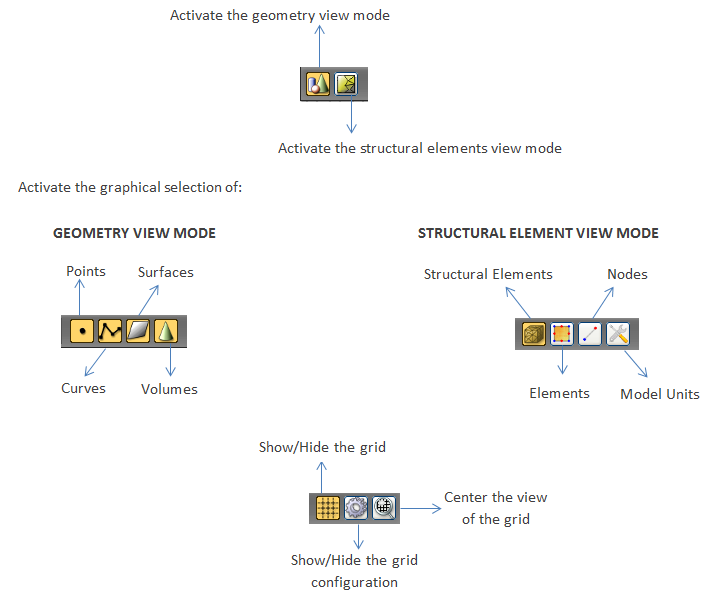

All the HUD bar members are described below:
If the user wants to make use of the grid, it is possible to directly modify the options and activate it in the HUD.
