This document visualize a tunnel construction process, from the beginning to its working phase. For this purpose, the

Act./Deact.

button has to be active.

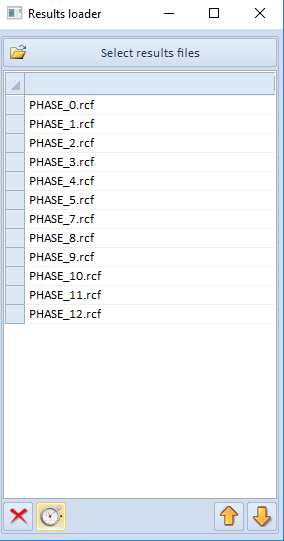

Thus, the results loader will contain the whole amount solved load stages. Actually, the user will only has to press the "Last" button in order to go ahead in the results visualization.

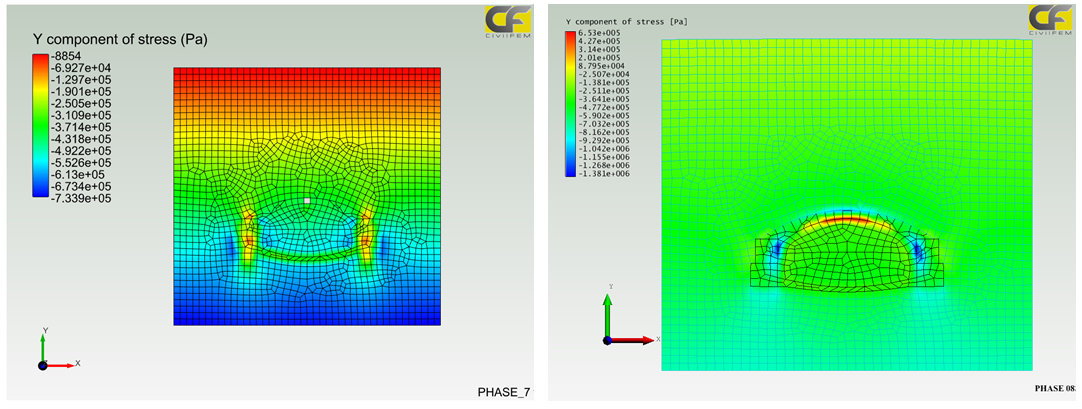

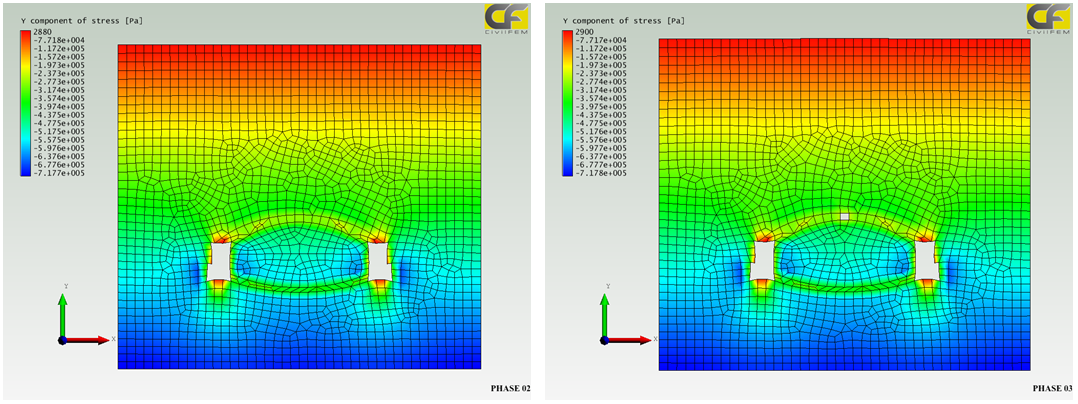

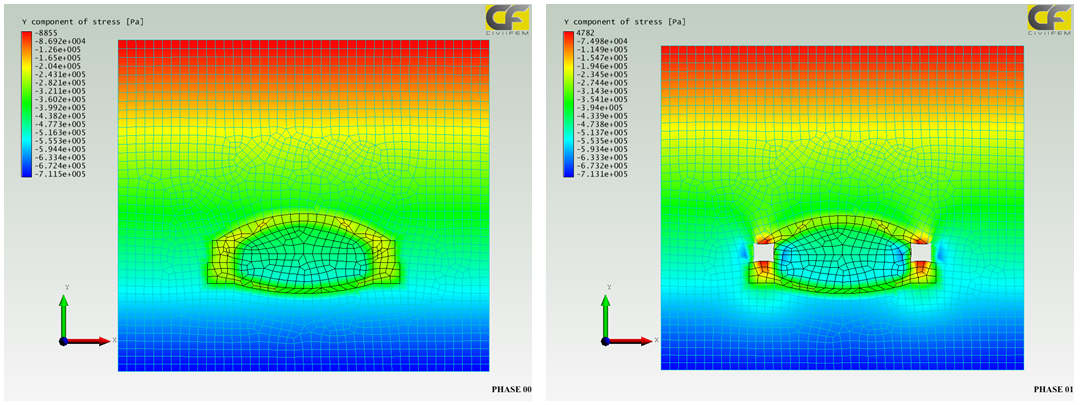

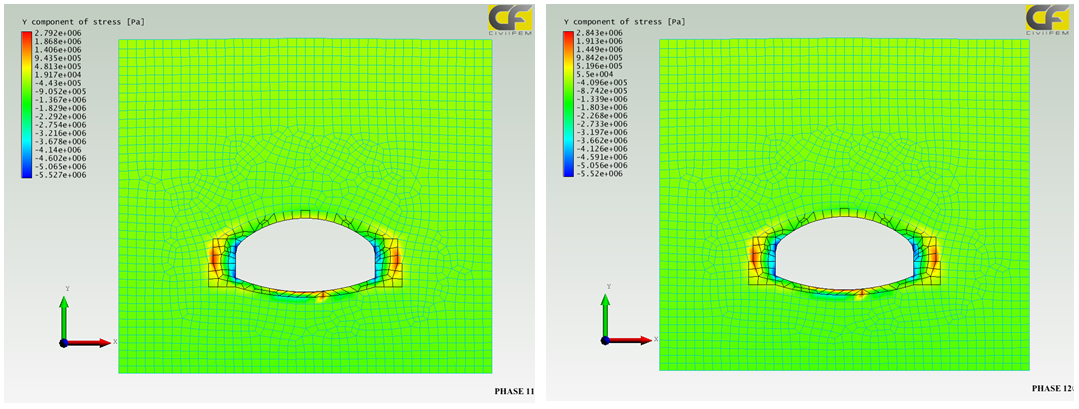

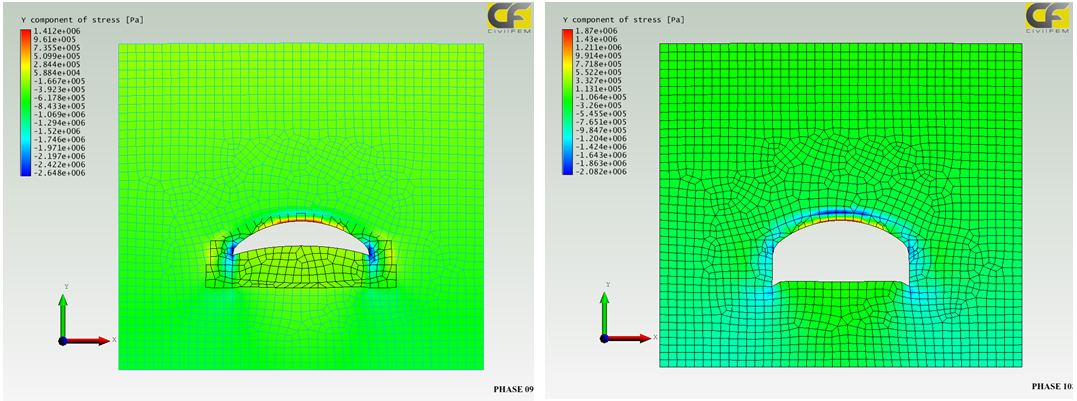

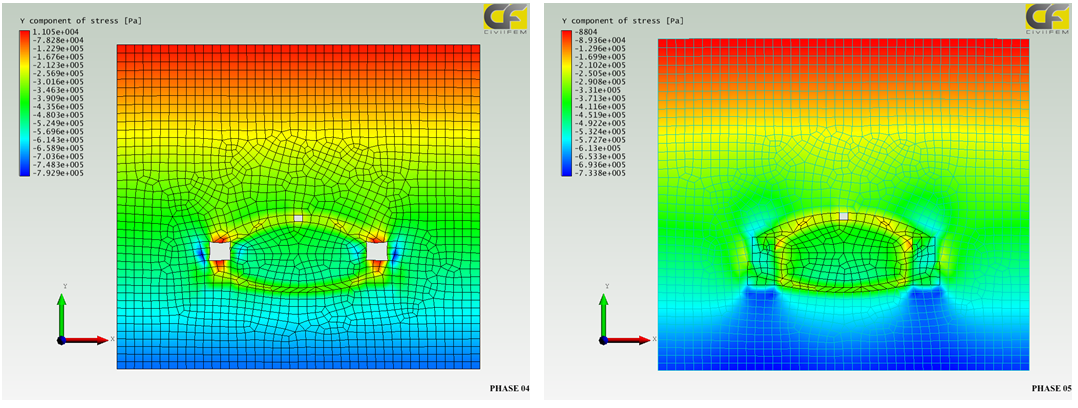

Results plotting, by load case, will be visualized ahead:



.



.
