CFVR3404 - Water table calculation and slope stability analysis connection

Example to check the water table calculation and slope stability analysis connection.

An earth dam is modeled by a plane model. The aim of the example is to obtain the saturation line and water pressures in the soil, to then export these results to perform a slope stability analysis using the Janbu method.

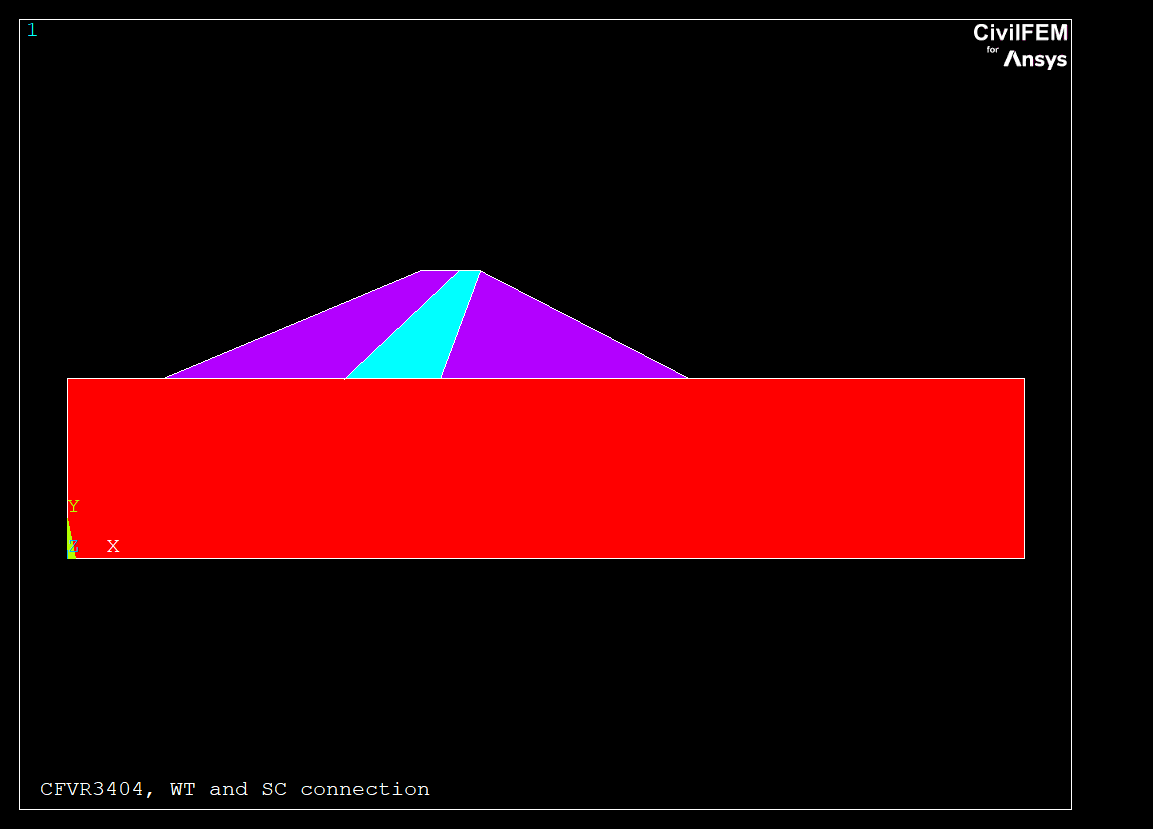

The model is made off three materials as shown in the figure:

Material 1. Clay type with 15300 N/m² dry specific weight. Used for the dam's nucleus.
Material 2. Gravel with 10200 N/m² dry specific weight. Used for the dam's body.
Material 3. Silt type with 12600 N/m² dry specific weight. Used for the base terrain.

Element types used in the model: PLANE42, MESH200

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example can be launched on an educational license.

KEYWORDS

Geotechnics

Seepage Analysis

Model Statistics
Number of elements	72
Number of nodes	92
Number of civil materials	3
Number of cross sections	0
Number of shell vertices	0

Log file: CFVR3404.DAT

   FINISH
  ~CFCLEAR,,1
  ~CFACTIV,GETC,Y

  /FILNAME,wttoslp,0

  NomFile='CFVR3404'
  /TITLE, %NomFile%, WT and SS connection
! ---------------------------------------------------------------------------------
! Model definition
! ---------------------------------------------------------------------------------
! Activate Seepage Analysis
~SEEPAGE,2D

/PREP7
! Preprocessor
! --------------------------------------------------
! Materials: Soil
  ~CFMP,1,LIB,SOIL,,CL
  ~CFMP,2,LIB,SOIL,,GW
  ~CFMP,3,LIB,SOIL,,ML
  ~CFMP,1,Soil,GAMD,,15300 ! CL
  ~CFMP,2,Soil,GAMD,,10200 ! GW
  ~CFMP,3,Soil,GAMD,,12600 ! ML

  PI = ACOS (-1)
  L    = 800
  ! Heights
  PROFU = 50
  H    = 100 + PROFU
  HWUS = 160 + PROFU
  HWDS = 110 + PROFU
  HC   = 190 + PROFU
  ! Horizontal coordinate
  LUS   = 80
  LEUS  = 232
  LCUS  = 295
  LEPUS = LUS+(LCUS-LUS)/(HC-H)*(HWUS-H)
  LCEUS = 327.3
  LEPUS2= 264
  LEDS  = 312
  LCEDS = 345.5
  LEPDS = LEDS + (HWDS-H)*1/(TAN(67.2*PI/180))
  LDS   = 520
  LEPDS2= LDS - (LDS - LCEDS)/(HC-H)*(HWDS-H)

! Keypoints
  K,1,0,0
  K,2,L,0
  K,3,0,H
  K,4,LUS,H
  K,5,LEUS,H
  K,6,LEDS,H
  K,7,LDS,H
  K,8,L,H
  K,9,LEPUS,HWUS
  K,10,LEPDS2,HWDS
  K,11,LCUS,HC
  K,12,LCEUS,HC
  K,13,LCEDS,HC
  K,14,KX(6) + (kx(13)-kx(6))/(ky(13)-ky(6))*(HWDS-H) ,HWDS

! Lines
  L,1,2
  L,3,4
  L,4,9
  L,9,11
  L,11,12
  L,13,10
  L,10,7
  L,5,12
  L,4,5
  L,5,6
  L,12,13
  L,6,14
  L,14,13
  L,6,7
  L,7,8
  L,1,3
  L,2,8
  L,10,14

! Water Table
  X1     = kx(5) + (kx(12) - kx(5))/(ky(12)-ky(5))*(HWUS-H)  ! X initial point
  Y1     = HWUS                      ! Y initial point
  Z1     =   0                       ! Z initial point
  X2     = kx(6) + (kx(13)-kx(6))/(ky(13)-ky(6))*(HWDS+25-H) ! X end point
  Y2     =   HWDS+25                 ! Y end point
  Z2     =   0                       ! Z end point
  NPOINTS=  6  ! Number of points dividing line
  Line1 =  8  ! Line over first point rest
  Line2 =  13 ! Line over second point rest
  MAT    =  1  ! Material

  ~WATTAB,X1,Y1,Z1,X2,Y2,Z2,MAT,NPOINTS,Line1,Line2,FIXED,EXIT

  L,9,15
  *GET,ULT_LIN,LINE,0,NUM,MAX

! Finite element Model
  MAT   = 3
  ESIZE =  20
  L1    = 1    $  L2    = 16  $   L3    = 2    $   L4    = 9
  L5    = 10   $  L6    = 14  $   L7    = 15   $   L8   = 17

  ~SEEPMOD,ADD,MAT ,,ESIZE,L1,L2,L3,L4,L5,L6,L7,L8

  MAT   = 2
  ESIZE = 10
  L1    = 3    $  L2    = ULT_LIN  $   L3    = 8    $   L4    = 9

  ~SEEPMOD,ADD,MAT ,,ESIZE,L1,L2,L3,L4

  MAT   = 1
  ESIZE = 7
  L1    = 8    $  L2    = 10  $   L3    = 12   $   L4    = 13

  ~SEEPMOD,ADD,MAT ,WT,ESIZE,L1,L2,L3,L4

  MAT   = 2
  ESIZE = 10
  L1    = 12    $  L2    = 18  $   L3    = 14    $   L4    = 7

  ~SEEPMOD,ADD,MAT ,,ESIZE,L1,L2,L3,L4

 ! Solution
 ! --------------------------------------------------
 ! Displacements
  /SOLU
   HEAD1 = HWUS
   HEAD2 = HWDS
  ~DLHEAD,add,9, head1
  ~DLHEAD,add,3, head1
  ~DLHEAD,add,8, head1
  ~DLHEAD,add,2, head1
  ~DLHEAD,add,ULT_LIN,head1
  ~DLHEAD,add,12,head2
  ~DLHEAD,add,14,head2
  ~DLHEAD,add,7 ,head2
  ~DLHEAD,add,15,head2
  ~DLHEAD,add,18,head2
  ~DLSEEP,ADD,13

  ~WTSOLVE
/POST1
  SET,LAST
  ~WTSLP

! Deactivate Seepage Analysis
  FINISH
  ~SEEPAGE,NONE

! Water table file has been created.
! The process is now completed.
!---------------------------------------------------------

   FINISH
  ~CFCLEAR,,1

  /FILNAME,wttoslp,0

  NomFile='CFVR3404'
  /TITLE, %NomFile%, WT and SC connection
! ---------------------------------------------------------------------------------
! Model definition
! ---------------------------------------------------------------------------------

/PREP7
! Preprocessor
! --------------------------------------------------
! Materials: Soil
  ~CFMP,1,LIB,SOIL,,CL
  ~CFMP,2,LIB,SOIL,,GW
  ~CFMP,3,LIB,SOIL,,ML
  ~CFMP,1,SOIL,RUSI,,1
  ~CFMP,2,SOIL,RUSI,,1
  ~CFMP,3,SOIL,RUSI,,1
  ~CFMP,1,Soil,GAMD,,15300 ! CL
  ~CFMP,2,Soil,GAMD,,10200 ! GW
  ~CFMP,3,Soil,GAMD,,12600 ! ML

  PI = ACOS(-1)
  L    = 800
  ! heights
  PROFU = 50
  H    = 100 + PROFU
  HWUS = 160 + PROFU
  HWDS = 110 + PROFU
  HC   = 190 + PROFU
  ! Horizontal coordinates
  LUS   = 80
  LEUS  = 232
  LCUS  = 295
  LEPUS = LUS+(LCUS-LUS)/(HC-H)*(HWUS-H)
  LCEUS = 327.3
  LEPUS2= 264
  LEDS  = 312
  LCEDS = 345.5
  LEPDS = LEDS + (HWDS-H)*1/(TAN(67.2*PI/180))
  LDS   = 520
  LEPDS2= LDS - (LDS - LCEDS)/(HC-H)*(HWDS-H)

! Keypoints
  K
  K,2,L,0,0
  K,3,0,H,0
  K,4,LUS,H,0
  K,5,LEUS,H,0
  K,6,LEDS,H,0
  K,7,LDS,H,0
  K,8,L,H,0
  K,9,LEPUS,HWUS,0
  K,10,LEPDS2,HWDS
  K,11,LCUS,HC
  K,12,LCEUS,HC
  K,13,LCEDS,HC
  K,14,kx(6) + (kx(13)-kx(6))/(ky(13)-ky(6))*(HWDS-H) ,HWDS

! Lines
  L,1,2
  L,3,4
  L,4,9
  L,9,11
  L,11,12
  L,13,10
  L,10,7
  L,5,12
  L,4,5
  L,5,6
  L,12,13
  L,6,14
  L,14,13
  L,6,7
  L,7,8
  L,1,3
  L,2,8
  L,10,14

  ESIZE,50
  AL,1,17,15,14,10,9,2,16 ! a1 bottom
  AL,9,8,5,4,3            ! a2 upper stream
  AL,14,7,6,13,12         ! a3 down stream
  AL,11,8,10,12,13        ! a4 nucleus

  ET,1,200,6
  TYPE,1
  MAT,3
  AMESH,1
  MAT,2
  AMESH,2
  AMESH,3
  MAT,1
  AMESH,4

  /NUMBER,1
  /PNUM,MAT,1
  APLOT
  /IMAGE, SAVE, %NomFile%,BMP

  p1=NODE(KX(8),KY(8),KZ(8))
  p2=NODE(KX(3),KY(3),KZ(3))
  p3=NODE(KX(4),KY(4),KZ(4))

  ! SLOPE INPUT
  ~SLPIN,p1,p2,p3
  ~SLPOPT,,,,,,3
  ~SLPPOL, 200,220,200,150,100,75,45
  ~SLPPOL, 250,220,200,150,100,75,45
  ~SLPPOL, 300,220,200,150,100,75,45
  ~SLPPOL, 350,220,200,150,100,75,45
  ~SLPPOL, 400,220,200,150,100,75,45
  ~SLPPOL, 450,220,200,150,100,75,45
  ~SLPPOL, 500,220,200,150,100,75,45
  ~SLPPOL, 550,220,200,150,100,75,45
  ~SLPPOL, 600,220,200,150,100,75,45

  /POST1
  ~SLPSOL,2

!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp = 2
  NComp_ch = 0

! Matrix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! Labels
  LABEL(1,1)  = 'Safety F'
  LABEL(2,1)  = 'NValid  '

! Correct values
  VALUE( 1,1) = 2.6
  VALUE( 2,1) = 61

  ~cfget,VALUE(1,2),slope,,res,F,,2,9
  ~cfget,VALUE(2,2),slope,,surf,nvalid,

! Warning and error tolerances
  *DO,II,1,2
    TOLER(II, 1)= 1E-1
    TOLER(II, 2)= 1E-1
  *ENDDO

!--------------------------------------------------------------------------------------
! Results Comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

Label	Target	CivilFEM	Ratio	Tolerance
Safety F	2.6	2.5855	1.006	0.1
NValid	61	61	1.000	0.1
