CFVR7516 - Steel checking according to ANSI AISC N690-1994

Building checking

A concrete and steel building is subjected to different pressures on floors and columns.
Determine the total criterion from 60 selected elements after all types of checking according to ANSI AISC N690-94

Element types used in the model: BEAM188, SHELL63

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.
KEYWORDS
Beam
Cross Section
Code Checking/Design
Steel
AISC N690-94


Model Statistics
Number of elements 520
Number of nodes 580
Number of civil materials 2
Number of cross sections 12
Number of shell vertices 1

Log file: CFVR7516.DAT


FINISH
~CFCLEAR,,1

   NomFile='CFVR7516'

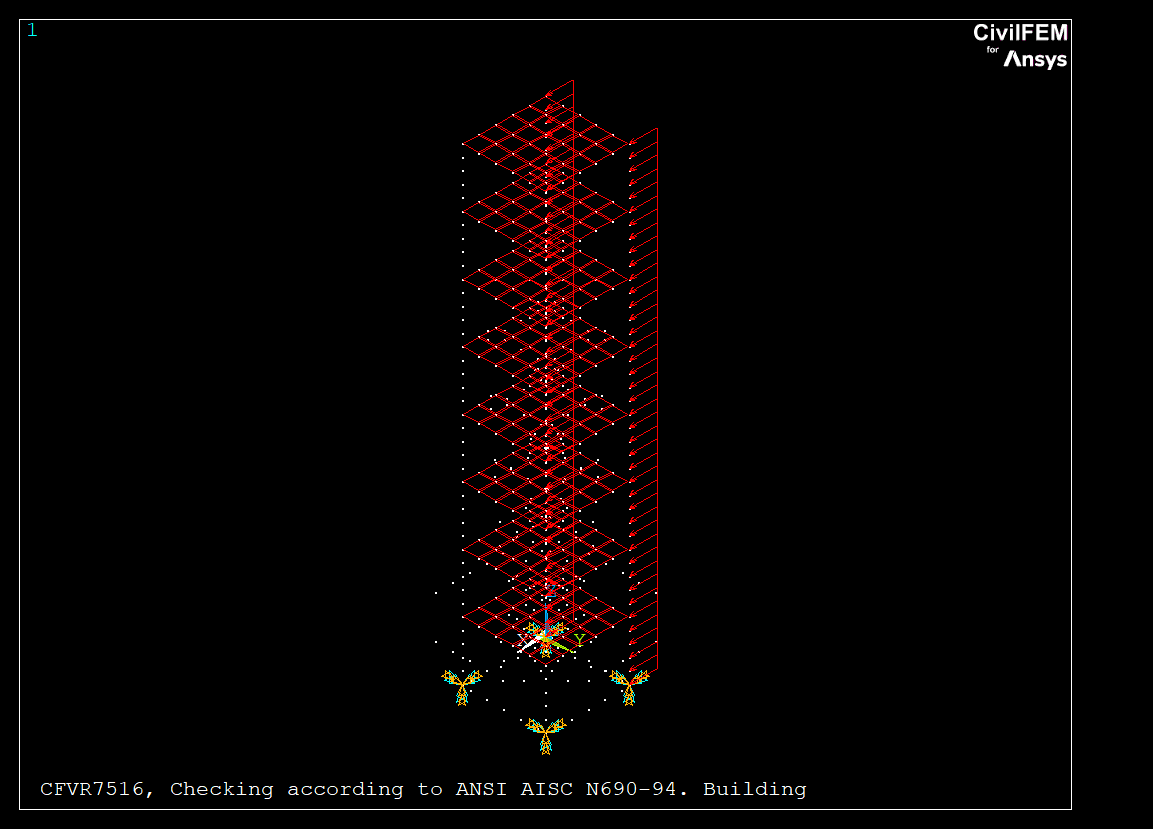

 /TITLE, %NomFile%, Checking according to ANSI AISC N690-94. Building
! -------------------------------------------------------------------------------------
! Initial data
! -------------------------------------------------------------------------------------
! CivilFEM SETUP
~CFACTIV,NUCL,Y
~CODESEL,N690,ACI,ACI,,CALTRANS
~UNITS,SI

/VUP,ALL,Z ! Vertical Z axis

/PREP7

! Materials
~CFMP,1,LIB,STEEL,ASTM,A572Gr50
~CFMP,2,LIB,CONCRETE,ACI,fc_4000
~CFMP,2,USER
~CFMP,2,DatGen  ,GAM     ,,24517
~CFMP,2,DatGen  ,Gxy     ,,1.1732e+010
~CFMP,2,ACI_C   ,Ec      ,,2.8158e+010,7,0,0

! Element Types
ET,1,BEAM188,,,2
ET,2,63

! Cross section definition
~SSECLIB,1,1,51,18   ! W 40x331
~SSECLIB,2,1,53,19   ! S 10x25.4
~SSECLIB,3,1,111,8   ! I C 250x37
~SSECLIB,4,1,75,13   ! C    230x  19.9
~SSECLIB,5,1,82,11   ! P 127
~SSECLIB,6,1,77,18   ! L 203x102x15.9
~SSECLIB,7,1,59,3    ! MT  5x  4.50
~SSECLIB,8,1,80,13   ! ST 190x32
~SSECLIB,9,1,105,14  ! 2L 8x6x7/16
~SSECLIB,10,1,81,18  ! TS 406x406
~SSECLIB,11,1,112,16 ! 2 C 200x17.1
~SSECLIB,12,1,112,15 ! 2 C 200x20.5
~SSECLIB,12,1,106,18 ! 4L 8x4x5/8

! Shell Vertex
~SHLRNF,1,0.25,2,0,0.0,0.0,0.0,0.0,0.0,0,0.0,45.0
~SHLMDF,1,NAME,,,Shell Vertex 1

! Member properties
~MEMBPRO,1,N690,L,3.5
~MEMBPRO,2,N690,L,5.0

! Beam and Shell properties
~BMSHPRO, 1,BEAM, 1, 1,,,188,2,0,,Beam 1
~BMSHPRO, 2,BEAM, 2, 2,,,188,2,0,,Beam 2
~BMSHPRO, 3,BEAM, 3, 3,,,188,2,0,,Beam 3
~BMSHPRO, 4,BEAM, 4, 4,,,188,2,0,,Beam 4
~BMSHPRO, 5,BEAM, 5, 5,,,188,2,0,,Beam 5
~BMSHPRO, 6,BEAM, 6, 6,,,188,2,0,,Beam 6
~BMSHPRO, 7,BEAM, 7, 7,,,188,2,0,,Beam 7
~BMSHPRO, 8,BEAM, 8, 8,,,188,2,0,,Beam 8
~BMSHPRO, 9,BEAM, 9, 9,,,188,1,0,,Beam 9
~BMSHPRO,10,BEAM,10,10,,,188,1,0,,Beam 10
~BMSHPRO,11,BEAM,11,11,,,188,1,0,,Beam 11
~BMSHPRO,12,BEAM,12,12,,,188,1,0,,Beam 12
~BMSHPRO,13,SHELL,1,1,1,1,63,,,,Shell 13

! Nodes and elements

NFLOOR=9

H=0
A=1
B=2
C=3
D=4
KOR=5

*DO,I,1,NFLOOR
  K,A,0,0,H
  K,B,5,0,H
  K,C,5,5,H
  K,D,0,5,H
  K,KOR,2.5,2.5,H
  H=H+3.5
  A=A+10
  B=B+10
  C=C+10
  D=D+10
  KOR=KOR+10
*ENDDO

A=11
B=12
C=13
D=14

*DO,I,2,NFLOOR
  L,A,B
  L,B,C
  L,C,D
  L,D,A
  A=A+10
  B=B+10
  C=C+10
  D=D+10
*ENDDO

A=1
B=2
C=3
D=4

*DO,I,1,NFLOOR-1
  L,A,A+10
  L,B,B+10
  L,C,C+10
  L,D,D+10
  A=A+10
  B=B+10
  C=C+10
  D=D+10
*ENDDO

H=3.5

*DO,I,1,NFLOOR-1
  LSEL,S,LOC,Z,H
  AL,ALL
  H=H+3.5
*ENDDO

ALLSEL,ALL

LESIZE,ALL, , ,5, , , , ,1

TYPE,1
MAT,1
SECN,

KSEL,S,LOC,X,0
KSEL,R,LOC,Y,0
LSLK,,1

SECNUM,9
LMESH,ALL

KSEL,S,LOC,X,0
KSEL,R,LOC,Y,5
LSLK,,1

SECNUM,10
LMESH,ALL

KSEL,S,LOC,X,5
KSEL,R,LOC,Y,0
LSLK,,1

SECNUM,11
LMESH,ALL

KSEL,S,LOC,X,5
KSEL,R,LOC,Y,5
LSLK,,1

SECNUM,12
LMESH,ALL

H=3.5
KOR=15

*DO,I,1,NFLOOR-1
  LSEL,S,LOC,Z,H
  LATT,1,I,1,,KOR,,I
  LMESH,ALL
  H=H+3.5
  KOR=5+10
*ENDDO

ALLSEL,ALL

TYPE,2
MAT,2
REAL,13
SECN,

AMESH,ALL

/SHRINK,0
/ESHAPE,1.0
/VIEW,1,1,1,1
/REPLOT

/SOLU

NSEL,S,LOC,Z,0

D,ALL, , , , , ,ALL, , , , ,

ALLSEL,ALL

ESEL,S,TYPE,,2
SFE,ALL,1,PRES,,-4000,,,

ALLSEL,ALL

NSEL,S,LOC,X,0
NSEL,R,LOC,Y,0
ESLN,S,1

SFBEAM,ALL,1,PRES,1000,,,,,,

NSEL,S,LOC,X,0
NSEL,R,LOC,Y,5
ESLN,S,1

SFBEAM,ALL,1,PRES,1000,,,,,,

ALLSEL,ALL

/IMAGE,SAVE,%NomFile%,BMP

SOLVE

/POST1

~CFSET,0,1,LAST,
~CHKSTL,TENSION
~CHKSTL,COMPFBK
~CHKSTL,COMPFTBK
~CHKSTL,BENDING
~CHKSTL,SHEAR
~CHKSTL,COMP_BND
~CHKSTL,TENS_BND

!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp = 70
  NComp_ch = 0

! Matrix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! Labels
  LABEL( 1,1) = 'TENS_CRT_1'
  LABEL( 2,1) = 'TENS_CRT_2'
  LABEL( 3,1) = 'TENS_CRT_3'
  LABEL( 4,1) = 'TENS_CRT_4'
  LABEL( 5,1) = 'TENS_CRT_5'
  LABEL( 6,1) = 'TENS_CRT_6'
  LABEL( 7,1) = 'TENS_CRT_7'
  LABEL( 8,1) = 'TENS_CRT_8'
  LABEL( 9,1) = 'TENS_CRT_9'
  LABEL(10,1) = 'TENS_CRT_10'
  LABEL(11,1) = 'CMP_CRT_1'
  LABEL(12,1) = 'CMP_CRT_2'
  LABEL(13,1) = 'CMP_CRT_3'
  LABEL(14,1) = 'CMP_CRT_4'
  LABEL(15,1) = 'CMP_CRT_5'
  LABEL(16,1) = 'CMP_CRT_6'
  LABEL(17,1) = 'CMP_CRT_7'
  LABEL(18,1) = 'CMP_CRT_8'
  LABEL(19,1) = 'CMP_CRT_9'
  LABEL(20,1) = 'CMP_CRT_10'
  LABEL(21,1) = 'CMPT_CRT_1'
  LABEL(22,1) = 'CMPT_CRT_2'
  LABEL(23,1) = 'CMPT_CRT_3'
  LABEL(24,1) = 'CMPT_CRT_4'
  LABEL(25,1) = 'CMPT_CRT_5'
  LABEL(26,1) = 'CMPT_CRT_6'
  LABEL(27,1) = 'CMPT_CRT_7'
  LABEL(28,1) = 'CMPT_CRT_8'
  LABEL(29,1) = 'CMPT_CRT_9'
  LABEL(30,1) = 'CMPT_CRT_10'
  LABEL(31,1) = 'BEND_CRT_1'
  LABEL(32,1) = 'BEND_CRT_2'
  LABEL(33,1) = 'BEND_CRT_3'
  LABEL(34,1) = 'BEND_CRT_4'
  LABEL(35,1) = 'BEND_CRT_5'
  LABEL(36,1) = 'BEND_CRT_6'
  LABEL(37,1) = 'BEND_CRT_7'
  LABEL(38,1) = 'BEND_CRT_8'
  LABEL(39,1) = 'BEND_CRT_9'
  LABEL(40,1) = 'BEND_CRT_10'
  LABEL(41,1) = 'SH_CRT_1'
  LABEL(42,1) = 'SH_CRT_2'
  LABEL(43,1) = 'SH_CRT_3'
  LABEL(44,1) = 'SH_CRT_4'
  LABEL(45,1) = 'SH_CRT_5'
  LABEL(46,1) = 'SH_CRT_6'
  LABEL(47,1) = 'SH_CRT_7'
  LABEL(48,1) = 'SH_CRT_8'
  LABEL(49,1) = 'SH_CRT_9'
  LABEL(50,1) = 'SH_CRT_10'
  LABEL(51,1) = 'CBND_CRT_1'
  LABEL(52,1) = 'CBND_CRT_2'
  LABEL(53,1) = 'CBND_CRT_3'
  LABEL(54,1) = 'CBND_CRT_4'
  LABEL(55,1) = 'CBND_CRT_5'
  LABEL(56,1) = 'CBND_CRT_6'
  LABEL(57,1) = 'CBND_CRT_7'
  LABEL(58,1) = 'CBND_CRT_8'
  LABEL(59,1) = 'CBND_CRT_9'
  LABEL(60,1) = 'CBND_CRT_10'
  LABEL(61,1) = 'TBND_CRT_1'
  LABEL(62,1) = 'TBND_CRT_2'
  LABEL(63,1) = 'TBND_CRT_3'
  LABEL(64,1) = 'TBND_CRT_4'
  LABEL(65,1) = 'TBND_CRT_5'
  LABEL(66,1) = 'TBND_CRT_6'
  LABEL(67,1) = 'TBND_CRT_7'
  LABEL(68,1) = 'TBND_CRT_8'
  LABEL(69,1) = 'TBND_CRT_9'
  LABEL(70,1) = 'TBND_CRT_10'

! Correct values
  VALUE( 1,1)=0.0
  VALUE( 2,1)=0.0
  VALUE( 3,1)=0.202E-3
  VALUE( 4,1)=0.190E-2
  VALUE( 5,1)=0.111E-2
  VALUE( 6,1)=0.120E-3
  VALUE( 7,1)=0.0
  VALUE( 8,1)=0.0
  VALUE( 9,1)=0.418E-5
  VALUE(10,1)=0.0
  VALUE(11,1)=0.194E-1
  VALUE(12,1)=0.107
  VALUE(13,1)=0.0
  VALUE(14,1)=0.0
  VALUE(15,1)=0.0
  VALUE(16,1)=0.0
  VALUE(17,1)=0.796D-03
  VALUE(18,1)=0.447E-3
  VALUE(19,1)=0.0
  VALUE(20,1)=0.863E-2
  VALUE(21,1)=0.184E-1
  VALUE(22,1)=0.107
  VALUE(23,1)=0.0
  VALUE(24,1)=0.0
  VALUE(25,1)=0.0
  VALUE(26,1)=0.0
  VALUE(27,1)=0.365E-3
  VALUE(28,1)=0.459E-3
  VALUE(29,1)=0.0
  VALUE(30,1)=0.879E-2
  VALUE(31,1)=0.508E-1
  VALUE(32,1)=0.405E-1
  VALUE(33,1)=0.167E-2
  VALUE(34,1)=0.113
  VALUE(35,1)=0.613E-1
  VALUE(36,1)=0.202E-1
  VALUE(37,1)=0.248E-2
  VALUE(38,1)=0.430E-2
  VALUE(39,1)=0.498E-1
  VALUE(40,1)=0.506E-2
  VALUE(41,1)=0.319E-1
  VALUE(42,1)=0.184E-1
  VALUE(43,1)=0.975E-2
  VALUE(44,1)=0.165E-1
  VALUE(45,1)=0.120E-1
  VALUE(46,1)=0.591E-2
  VALUE(47,1)=0.125E-1
  VALUE(48,1)=0.470E-2
  VALUE(49,1)=0.122E-2
  VALUE(50,1)=0.240E-2
  VALUE(51,1)=0.166
  VALUE(52,1)=0.183
  VALUE(53,1)=0.197E-2
  VALUE(54,1)=0.121
  VALUE(55,1)=0.752E-1
  VALUE(56,1)=0.319E-1
  VALUE(57,1)=0.781E-2
  VALUE(58,1)=0.326E-1
  VALUE(59,1)=0.571E-1
  VALUE(60,1)=0.269E-1
  VALUE(61,1)=0.148
  VALUE(62,1)=0.883D-1
  VALUE(63,1)=0.202D-2
  VALUE(64,1)=0.123
  VALUE(65,1)=0.754E-1
  VALUE(66,1)=0.319E-1
  VALUE(67,1)=0.819E-2
  VALUE(68,1)=0.327E-1
  VALUE(69,1)=0.571E-1
  VALUE(70,1)=0.215E-1

! Comparison
 *DO,ii,1,7
   ~CFSET,ii
   ~PLLSSTL,CRT_TOT
   *GET,VALUE(1+10*(ii-1),2),ELEM,41,ETAB,CFETAB_J
   *GET,VALUE(2+10*(ii-1),2),ELEM,121,ETAB,CFETAB_J
   *GET,VALUE(3+10*(ii-1),2),ELEM,171,ETAB,CFETAB_J
   *GET,VALUE(4+10*(ii-1),2),ELEM,191,ETAB,CFETAB_J
   *GET,VALUE(5+10*(ii-1),2),ELEM,211,ETAB,CFETAB_J
   *GET,VALUE(6+10*(ii-1),2),ELEM,231,ETAB,CFETAB_J
   *GET,VALUE(7+10*(ii-1),2),ELEM,251,ETAB,CFETAB_J
   *GET,VALUE(8+10*(ii-1),2),ELEM,271,ETAB,CFETAB_J
   *GET,VALUE(9+10*(ii-1),2),ELEM,291,ETAB,CFETAB_J
   *GET,VALUE(10*ii,2),ELEM,311,ETAB,CFETAB_J
 *ENDDO

! Warning and error tolerances
  *DO,ii,1,70
  TOLER(ii, 1)= 1E-03   $ TOLER(ii, 2)= 1E-03
  *ENDDO
  TOLER( 3, 1)= 1E-04   $ TOLER( 3, 2)= 1E-04
  TOLER( 6, 1)= 1E-04   $ TOLER( 6, 2)= 1E-04
  TOLER( 9, 1)= 1E-06   $ TOLER( 9, 2)= 1E-06
  TOLER(17, 1)= 1E-04   $ TOLER(17, 2)= 1E-04
  TOLER(18, 1)= 1E-04   $ TOLER(18, 2)= 1E-04
  TOLER(27, 1)= 1E-04   $ TOLER(27, 2)= 1E-04
  TOLER(28, 1)= 1E-04   $ TOLER(28, 2)= 1E-04

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

LabelTargetCivilFEMRatioTolerance
TENS_CRT 0 00.000 0.001
TENS_CRT 0 00.000 0.001
TENS_CRT 0.0002020.000202091.000 0.0001
TENS_CRT 0.0019 0.00190051.000 0.001
TENS_CRT 0.00111 0.00111360.997 0.001
TENS_CRT 0.000120.000121590.987 0.0001
TENS_CRT 0 00.000 0.001
TENS_CRT 0 00.000 0.001
TENS_CRT 4.18e-0064.6709e-0060.883 1e-006
TENS_CRT 0 00.000 0.001
CMP_CRT_ 0.0194 0.0194041.000 0.001
CMP_CRT_ 0.107 0.106891.001 0.001
CMP_CRT_ 0 00.000 0.001
CMP_CRT_ 0 00.000 0.001
CMP_CRT_ 0 00.000 0.001
CMP_CRT_ 0 00.000 0.001
CMP_CRT_ 0.0007960.000795941.000 0.0001
CMP_CRT_ 0.0004470.000430511.037 0.0001
CMP_CRT_ 0 00.000 0.001
CMP_CRT_ 0.00863 0.00862611.000 0.001
CMPT_CRT 0.0184 0.0184290.998 0.001
CMPT_CRT 0.107 0.106891.001 0.001
CMPT_CRT 0 00.000 0.001
CMPT_CRT 0 00.000 0.001
CMPT_CRT 0 00.000 0.001
CMPT_CRT 0 00.000 0.001
CMPT_CRT 0.0003650.000362821.006 0.0001
CMPT_CRT 0.0004590.000442091.037 0.0001
CMPT_CRT 0 00.000 0.001
CMPT_CRT 0.00879 0.0087871.000 0.001
BEND_CRT 0.0508 0.0508061.000 0.001
BEND_CRT 0.0405 0.0404691.001 0.001
BEND_CRT 0.00167 0.00166141.005 0.001
BEND_CRT 0.113 0.1131.000 0.001
BEND_CRT 0.0613 0.061340.999 0.001
BEND_CRT 0.0202 0.0202061.000 0.001
BEND_CRT 0.00248 0.00248670.997 0.001
BEND_CRT 0.0043 0.00431810.996 0.001
BEND_CRT 0.0498 0.049990.996 0.001
BEND_CRT 0.00506 0.00511930.988 0.001
SH_CRT_1 0.0319 0.0318561.001 0.001
SH_CRT_2 0.0184 0.018470.996 0.001
SH_CRT_3 0.00975 0.00975181.000 0.001
SH_CRT_4 0.0165 0.0165170.999 0.001
SH_CRT_5 0.012 0.0119631.003 0.001
SH_CRT_6 0.00591 0.00588831.004 0.001
SH_CRT_7 0.0125 0.0124411.005 0.001
SH_CRT_8 0.0047 0.00468241.004 0.001
SH_CRT_9 0.00122 0.00122790.994 0.001
SH_CRT_1 0.0024 0.00240370.998 0.001
CBND_CRT 0.166 0.165841.001 0.001
CBND_CRT 0.183 0.183570.997 0.001
CBND_CRT 0.00197 0.00181131.081 0.001
CBND_CRT 0.121 0.121360.997 0.001
CBND_CRT 0.0752 0.0742631.013 0.001
CBND_CRT 0.0319 0.0318711.001 0.001
CBND_CRT 0.00781 0.00852880.908 0.001
CBND_CRT 0.0326 0.0327160.996 0.001
CBND_CRT 0.0571 0.0572410.998 0.001
CBND_CRT 0.0269 0.0270550.994 0.001
TBND_CRT 0.148 0.147651.002 0.001
TBND_CRT 0.0883 0.0883371.000 0.001
TBND_CRT 0.00202 0.00201341.003 0.001
TBND_CRT 0.123 0.123260.998 0.001
TBND_CRT 0.0754 0.0753771.000 0.001
TBND_CRT 0.0319 0.0319920.997 0.001
TBND_CRT 0.00819 0.00817021.002 0.001
TBND_CRT 0.0327 0.0326761.001 0.001
TBND_CRT 0.0571 0.0572450.998 0.001
TBND_CRT 0.0215 0.0216050.995 0.001

Contains proprietary and confidential information of Ingeciber, S.A.
