CFVR6101 - Poligonal pile wailing

Poligonal pile wailing design using Geotechnical Module utility

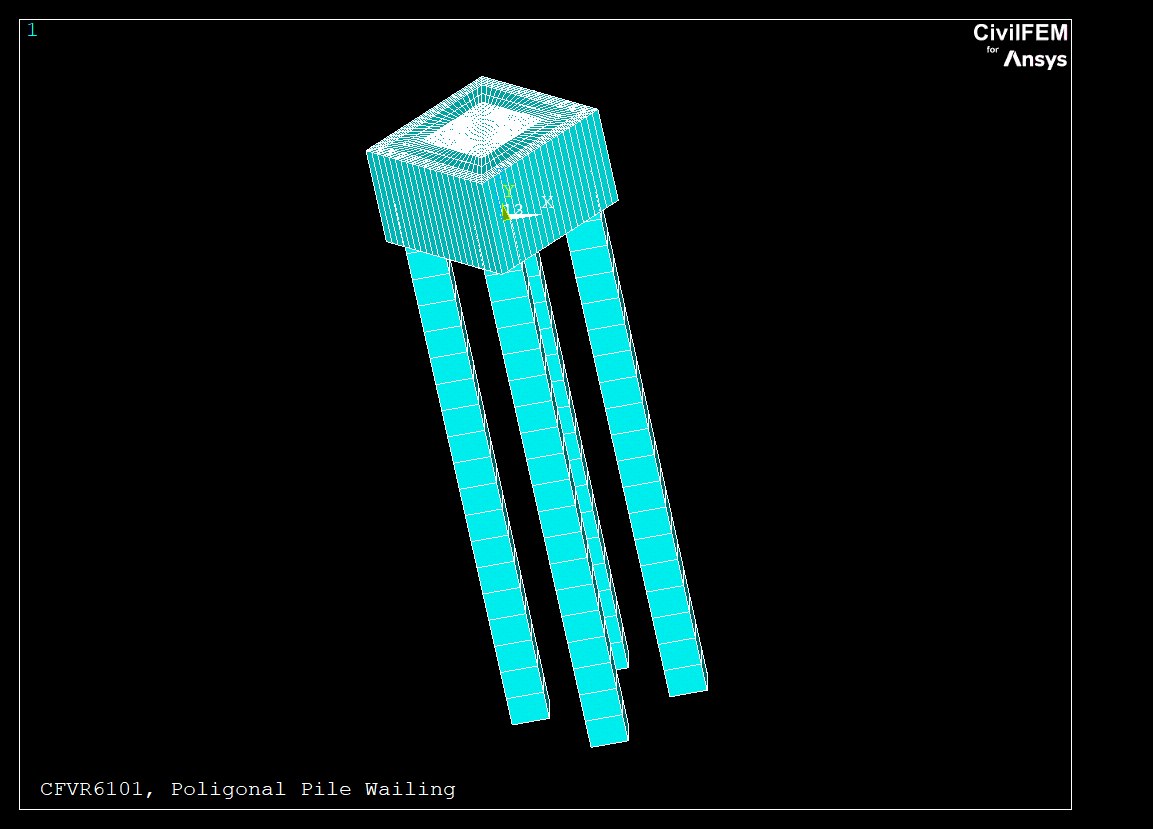

A pile wailing consisting of a rectangular slab and 4 piles subjected to a vertical force and placed in a lime soil terain.
Determine the total design of piles and slab considering it as rigid. (strut & tie method) according to EHE spanih code and axial force in piles.

Element types used in the model: BEAM4, SHELL43, LINK8

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.

KEYWORDS

Code Checking/Design

Geotechnics

Piles

EHE

Model Statistics
Number of elements	2084
Number of nodes	2125
Number of civil materials	3
Number of cross sections	1
Number of shell vertices	2

Log file: CFVR6101.DAT

 FINISH
 ~CFCLEAR,,1
 NomFile='CFVR6101'
 /TITLE, %NomFile%, Poligonal Pile Wailing

  ~CFACTIV,GETC,Y

! -------------------------------------------------------------------------------------
! Initial data
! -------------------------------------------------------------------------------------
! CivilFEM SETUP
  ~CODESEL,EC3-92,EHE-98,EHE-98,,EC8-04    ! Set EHE codes
  ~UNITS,SI              ! Set SI units
  /PREP7

  ~CFMP,2,LIB,CONCRETE,EHE,HA-25
  ~CFMP,3,LIB,REINF,EHE,B 500 S
  ~CFMP,4,LIB,SOIL,,CL
  ~CFMP,4,SOIL    ,SPT     ,,46
  ~CFMP,4,SOIL    ,QU      ,,500000
  ~CFMP,4,SOIL    ,PHIMCEFF,,38
  ~CFMP,4,SOIL    ,CMCEFF  ,,60000

  ~TERDEF,1,NEW,1,0,Z,,,,0,,Lime soil
  ~TERDEF,1,LAYER,1,4,50 ,0 ,DB  ,0

  ~GTPD,CFVR6101,pwCF
  /ESHAPE,1.0
  EPLOT
  /IMAGE, SAVE,%NomFile%, BMP

/POST1
!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp = 2
  NComp_ch = 0

! Matrix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! Correct values
  VALUE( 1,1) = 1840
  VALUE( 2,1) = -3750000		! with selftweight the result is: -4348049.2

! ---------------------------------------------------------------------------------
! Control tests
! ---------------------------------------------------------------------------------
! Test 1:
! - Frame dimensions
! Test 2:
! - Reinforcement results
! ---------------------------------------------------------------------------------
! Test 1:
  *GET,VALUE( 1,2),ELEM,,COUNT
  /POST1
  ~CFSET,,1
  ~CFGET,VALUE( 2,2),ELEMENT,1761,FORCE,FX,J

! Labels
  LABEL( 1) ='NELM'
  LABEL( 2) ='AXIALMIN'

! Warning and error tolerances
  TOLER( 1, 1)= 1E-3        $   TOLER( 1, 2)= 1E-3
  TOLER( 2, 1)= 1E2         $   TOLER( 2, 2)= 1E2

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

Label	Target	CivilFEM	Ratio	Tolerance
NELM	1840	1840	1.000	0.001
AXIALMIN	-3.75e+006	-3.75e+006	1.000	100
