EC3 Check Section Results

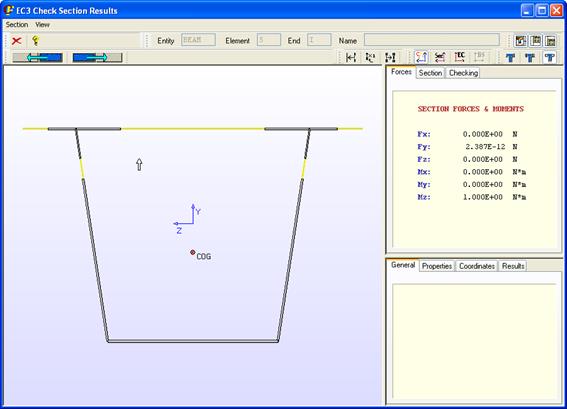

This window allows visualizing the Eurocode No. 3 section’s check.



The information is distributed in the window as explained hereafter:

















Each option available in this window is explained hereafter:



Bar Menu



Section Menu





Solid Section – Selects a solid section.

Element Number – Selects the section of an element.

Quit – Closes the window.



View Menu





Axis – Coordinate system: Section’s axis (Section), CivilFEM axis (CivilFEM) or Eurocode No. 3 check axis (EC3).

Section area – Allows to select the type of section to be visualized: Gross, Net or Effective.





Buttons Bar





     Closes window

     Shows help

      Type of element chosen for the representation.

           Number of element

              Element’s end

   Name of element

       Activate/deactivate section’s view

       Activate/deactivate section’s data

       Activate/deactivate element’s data view

   Selects the previous/next plate

     Reduce the thickness of linear elements in the representation

     Represents linear elements in original scale

     Increases the thickness of linear elements in the representation

       CivilFEM coordinate system

     Section’s coordinate system

        Eurocode No. 3 coordinate system

        British Standard coordinate system (unavailable)

     Gross section

     Net section

     Effective section
