~SHLSHR

~SHLSHR, IVTX, MATOP, ASSOP, PHIOP, NXOP, NYOP, SXOP, SYOP,ASSOPX,ASSOPY

Defines the shear reinforcement of a concrete shell vertex

PREP7: Shell Vertex

IVTX

Number of the shell vertex.

MATOP

Reinforcement material.

ASSOP

Reinforcement area per unit of area.

PHIOP

Diameter of the bars (in mm).

NXOP

Number of bars in the X direction per unit of length.

NYOP

Number of bars in the Y direction per unit of length.

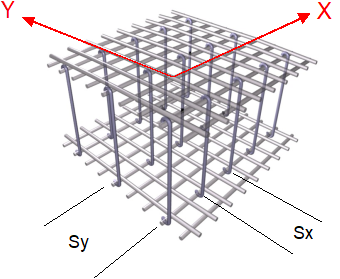

SXOP

Distance between bars in the X direction.

SYOP

Distance between bars in the Y direction.

ASSOPX

Reinforcement area per unit of area in the X direction.

ASSOPY

Reinforcement area per unit of area in the Y direction.

Notes

- The reinforcement area may be defined either by the ASSOP argument or by the PHIOP, NXOP, NYOP argument, by the PHIOP, SXOP, SYOP argument, or by the ASSOPX and ASSOPY arguments.

Menu Paths

Main Menu > Civil Preprocessor > Shell Vertex
