~SLPTANK



~SLPTANK, K1, K2, K3, K4, NTAN

Introduction of points defining the tangential mesh (through keypoints).

PREP7: GEOTECHNICAL MODULE: Slope stability

K1

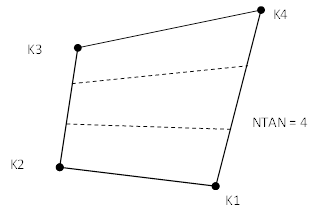

Keypoint 1 defining the parallelogram.

K2

Keypoint 2 defining the parallelogram.

K3

Keypoint 3 defining the parallelogram.

K4

Keypoint 4 defining the parallelogram.

NTAN

Number of tangents.

Notes

- Tangents are “infinite”, circles may be tangent to any point of the line and not only in the area enclosed by the quadrilateral. Therefore, the quadrilateral cannot be degenerated.

- If only one keypoint is introduced and the remaining are left blank, only circles passing through this point are taken. In this case, there is clearly only one circle per centre.

Menu Paths

Main Menu > Civil Preprocessor > Geotech. Mod. > Slope stability > Define > Tangents by kp +
